Oxygen Industrial Piston Compressor
Motor Power: 30 – 160 kw
Discharged Pressure: 0.7 – 3.0 MPa
Air Delivery: 3 – 12.5 m3/min
to become an agent. Learn more about agency policy.
More competitive agent price by FCL!
Oxygen piston compressor is a product specially designed and developed for special gas media on the basis of our company’s leading product oil-free lubrication air compressor.
In addition to the characteristics of the air compressor, it has been specially designed for the particularity of the compressed medium. The model has a compact structure, small size, beautiful appearance, stable operation, low specific power, and low noise.
The main features are as follows:
1. Absolutely sealed, the compressed medium does not leak, ensuring environmental production safety.
2. Using oil-free lubrication, the compressed medium does not contain oil, does not react, and maintains the original gas characteristics.
3. Equipped with gas recovery device to avoid gas loss.
Application:

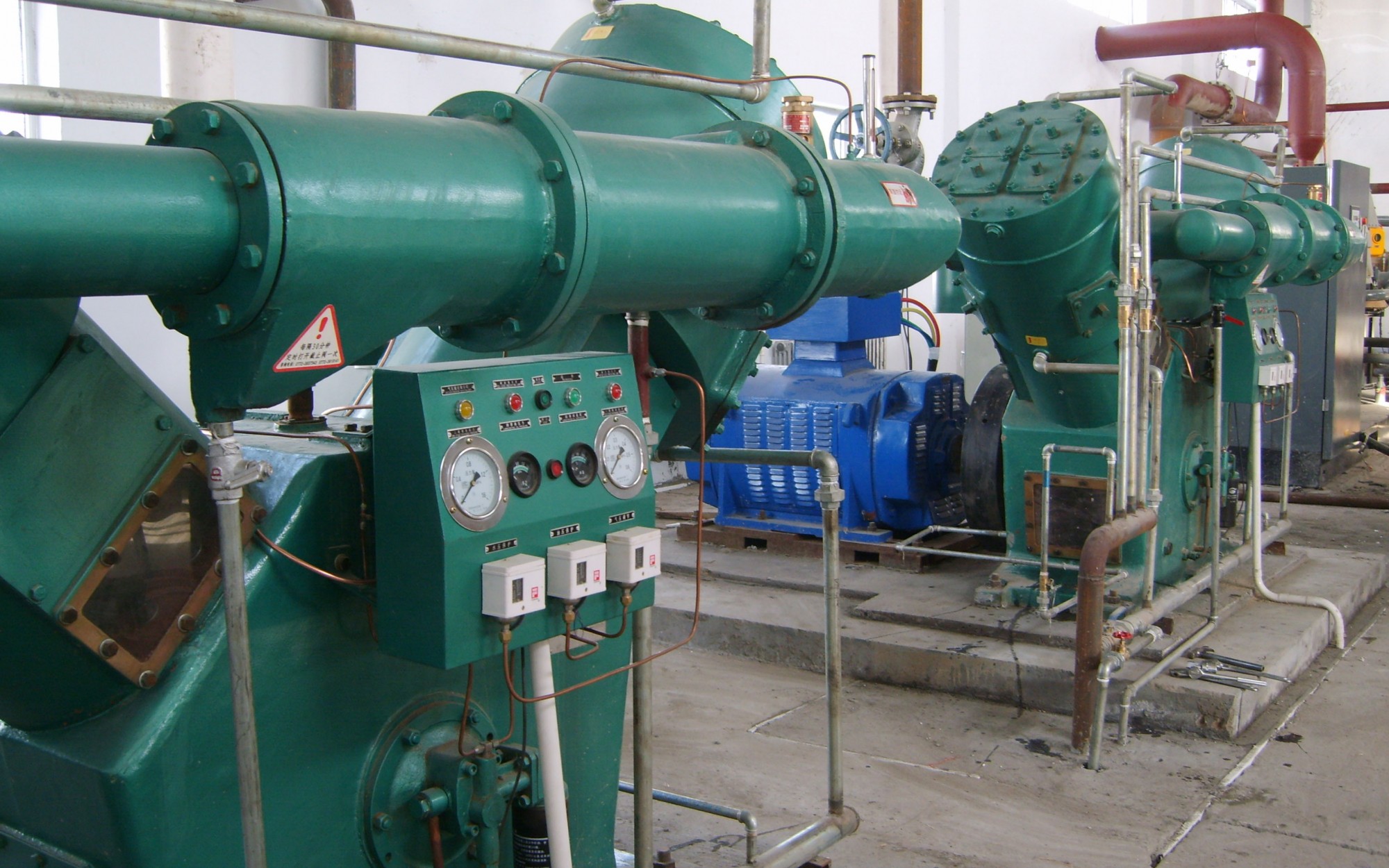

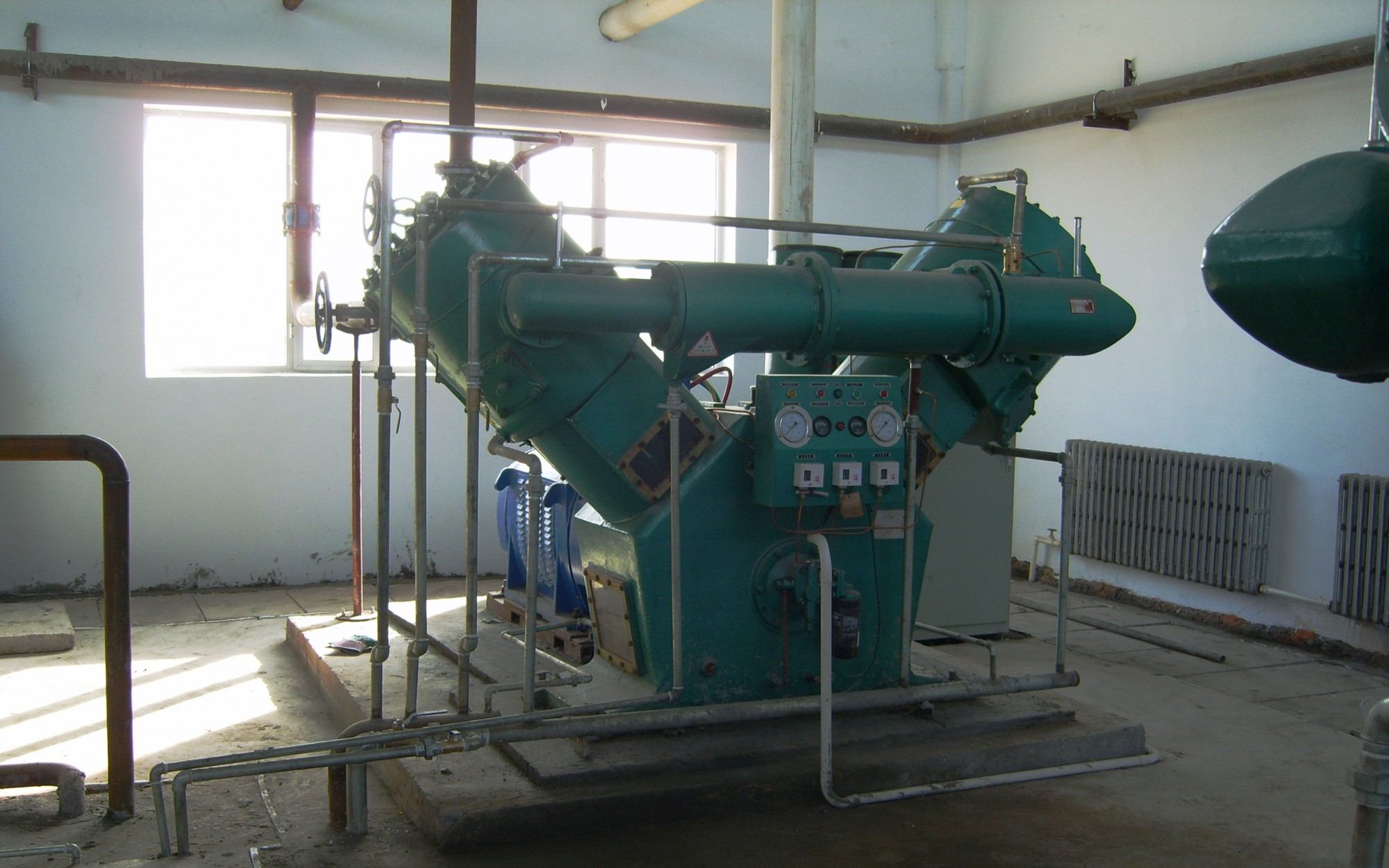

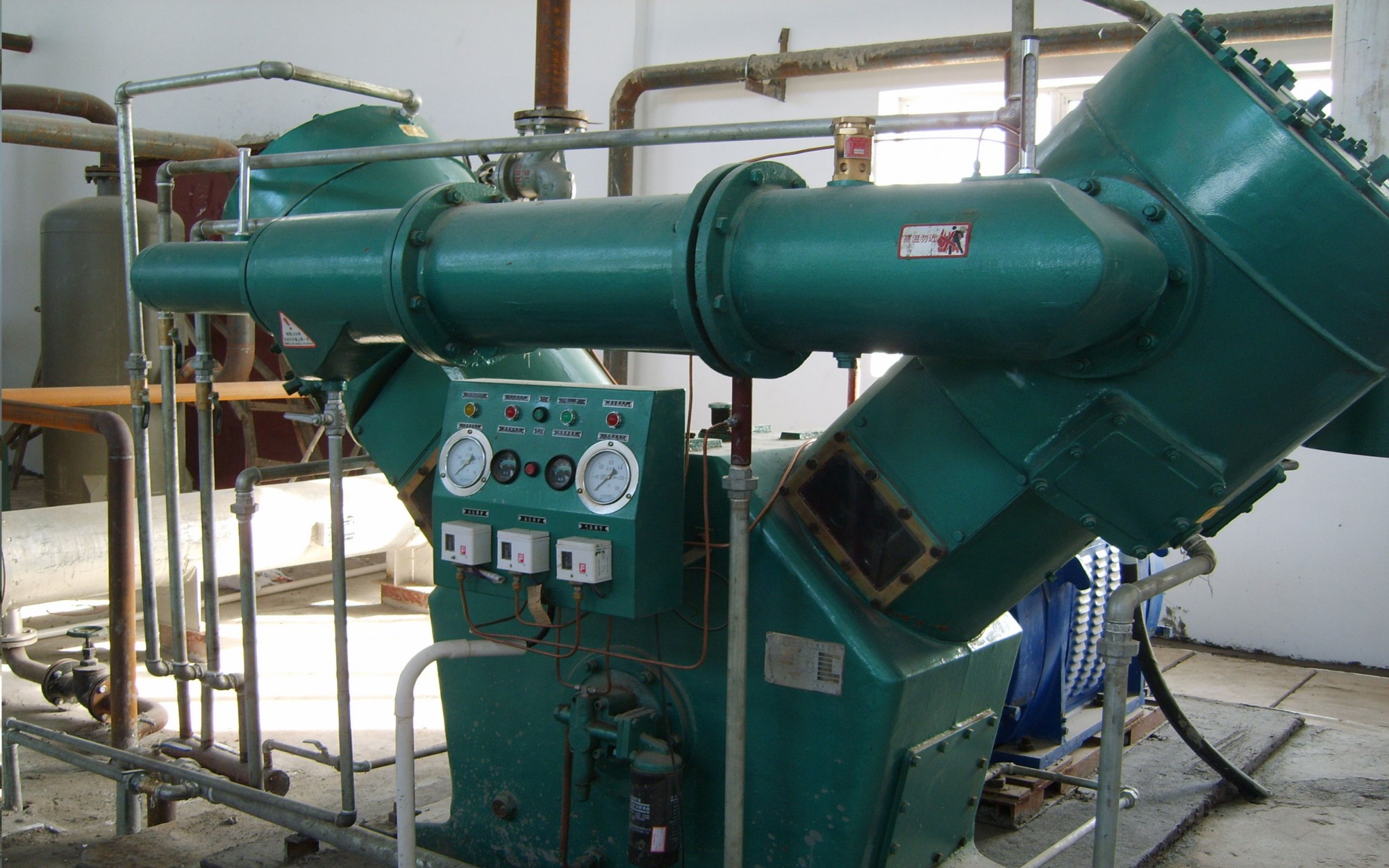

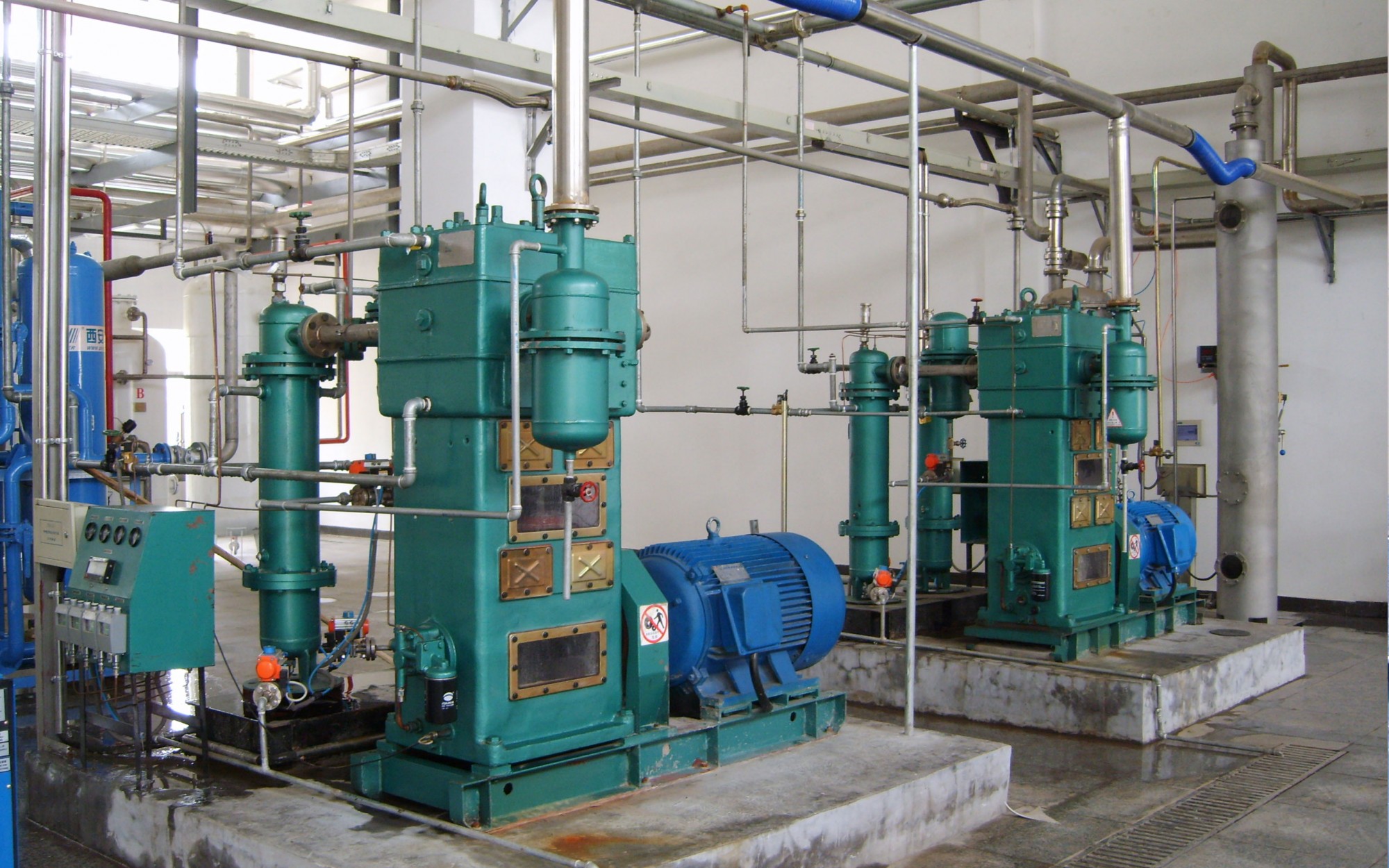

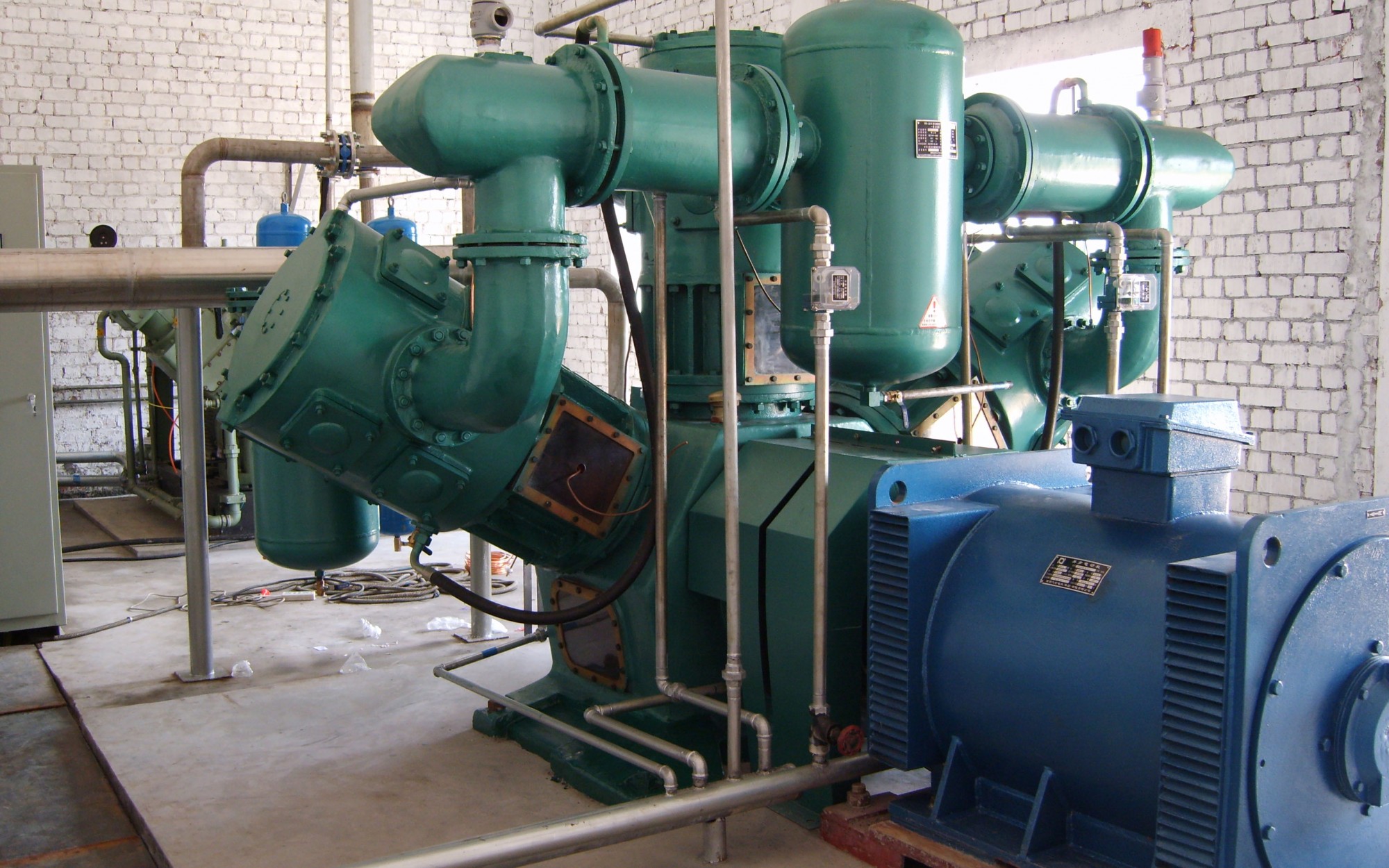

On-site:
| Oxygen Piston Compressor Technical Parameter | |||||||
| Model | EVW-10/30-II | EVW-6/30-II | EVW-3/30-II | EWW-12.5/30 | EZW-3/7 | EZW-6/8 | |
| Type | V-shaped, double-cylinder double-acting, stepped type, with foundation | W type, triplex double acting | Double cylinder single acting | Double cylinder double acting | |||
| Medium | oxygen | ||||||
| Stage | 3 | 3 | 3 | 3 | 2 | 2 | |
| Suction Pressure | MPa | 0.002~0.02 | 0.1 | 0.102~0.12 | 0.001 | ||
| Discharged pressure | MPa | 3.0 | 3.0 | 3.0 | 3.0 | 0.7 | 0.8 |
| Capacity | m3/min | 10 | 6 | 3 | 12.5 | 3 | 6 |
| Speed | r/min | 985 | 590 | 310 | 380 | 740 | 740 |
| Shaft Power | kW | ≤120 | ≤70 | ≤40 | ≤150 | ≤24 | ≤37 |
| Cylinder dia | mm | φ320/φ240/φ125 | φ430/φ260/φ160 | φ250/φ150 | φ250/φ150 | ||
| Stroke | mm | 104 | 104 | 104 | 160 | 110 | 110 |
| Suction temp | ℃ | ≤40 | ≤40 | ≤40 | ≤40 | ≤35/45 | ≤40/45 |
| Discharged temp | ℃ | ≤160 | ≤160 | ≤160 | ≤180 | ≤150 | ≤160 |
| Temp.at outlet of cooler | ℃ | ≤50 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| Oil temp | ℃ | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
| Cooling | Water cooling | ||||||
| Lubricating | Oil pump lubricates crankshaft, connecting rod, crosshead | ||||||
| Driving | Flexible coupling direct coupling | ||||||
| Max.temp.of intlet water | ℃ | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 |
| Max.temp.of outlet water | ℃ | ≤48 | ≤45 | ≤48 | ≤48 | ≤48 | ≤40 |
| Cooling water consumption | m3/h | 4.8 | 4.5 | 4.0 | 13.6 | 1.5 | 2 |
| Motor Type | Y315M2-6B5 | Y315M1-10B5 | Y280M-8 | YB355M3-8 | Y250M-8 | YB280S-8 | |
| Motor speed | r/min | 985 | 590 | 740 | 740 | 740 | 740 |
| Motor power | kW | 125 | 75 | 45 | 160 | 30 | 37 |
| Noise | dB(A) | ≤105 | ≤105 | ≤105 | ≤88 | ≤104 | ≤104 |
| Weight | kg | 5000 | 5000 | 5000 | 10500 | 2600 | 1600 |
| Dimensions(L×W×H) | mm | 2554×2300×1944 | 3026×1340×1944 | 1898×3974×2246 | 2250×1545×2100 | 2540×1545×2140 | |
