In the textile texturing industry, Elang provides appropriate answers and recommendations on what to focus on and how to choose an air compressor.

textile-texturing-industry

In the textile texturing industry, stable production processes and high-quality products are of paramount importance. Elang has set an outstanding performance standard in the industry with its advanced air compressors. In particular, its customised equipment, which exceeds first-class energy efficiency standards, demonstrates exceptional advantages in energy conservation and efficient production.

Energy conservation in textile production

Air compressors stand out for their outstanding energy efficiency. Elang’s customised equipment significantly reduces energy consumption through optimised design and advanced technology, enabling companies to effectively control energy costs while ensuring high-quality production.

air-compressor-for-textile-industry

High-quality stable output in textile production

The textile texturing industry has strict requirements for the stability and accuracy of air compression systems. Air compressors need to provide stable, continuous high-pressure air to ensure the quality of yarn stretching and shaping during the texturing process. This not only improves product uniformity and consistency, but also reduces production problems caused by air pressure fluctuations.

It should be noted that Elang’s energy-efficient air compressors, which exceed the first-level energy efficiency standard, are not standard configurations for all of its equipment, but rather customised designs based on specific customer requirements. This customisation not only demonstrates the company’s technological leadership, but also showcases its ability to tailor solutions to customer needs.

Compressors suitable for the textile texturing industry

Given the characteristics of the textile industry (high energy consumption, continuous operation, sensitivity to cleanliness), the following types of machines offer greater advantages:

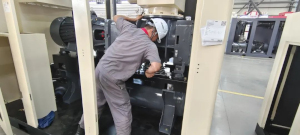

1.Oil-free air compressor

oil-free-compressor-for-textile-industry
Core Advantages:
Oil-free exhaust eliminates oil contamination at the source, eliminating the need for additional high-cost post-treatment equipment (such as oil mist filters), making it ideal for textile stretching processes with extremely high cleanliness requirements.

Stable operation and long service life (designed for over 100,000 hours), capable of meeting 24/7 continuous production demands.

Application Scenarios: Medium to high-capacity textile enterprises, production of high-end elastic yarns (e.g., medical, precision textiles).

2.Centrifugal Air Compressor

Core Advantages:
Ultra-energy efficient: Utilises magnetic levitation bearings with no mechanical friction, achieving 20%-30% energy savings compared to traditional screw compressors. Textile enterprises operating for extended periods (over 8,000 hours annually) can quickly recoup costs.
Stable air supply with minimal pressure fluctuations, oil-free operation, and high air cleanliness.

Low noise level (≤85 dB), suitable for factories with high requirements for workshop environmental conditions.

Application Scenarios: Large-scale production bases (air demand ≥50 m³/min) and enterprises prioritising long-term energy efficiency.

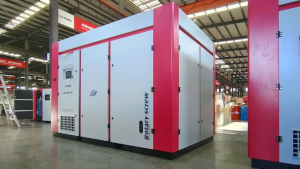

3.Low-pressure screw air compressor (discharge pressure 0.6-0.8 MPa)

low-pressure-screw-compressor
Core Advantages:
Stretching machines typically require an operating pressure of 0.6–0.8 MPa. Low-pressure models are more energy-efficient than high-pressure models (under the same air volume, a 0.1 MPa reduction in pressure reduces energy consumption by approximately 7%).

Mature structure, low maintenance costs, suitable for small and medium-sized enterprises or scenarios with limited budgets.

Notes: Must be paired with an efficient dryer (such as an adsorption dryer with a dew point ≤-40°C) and a precision filter (≥3-stage filtration) to ensure effective oil and water removal.

Additional features and considerations for the textile industry

Variable frequency control

PM-compressor-for-textile-industry
Select an air compressor with variable frequency drive (VFD) functionality, which can automatically adjust the speed based on the real-time air consumption of the stretching machine, thereby avoiding ‘no-load energy consumption.’ This is particularly suitable for enterprises with significant fluctuations in production loads (such as those operating multiple shifts or with unstable order volumes).

Intelligent monitoring system

Models equipped with remote monitoring, fault warning, and energy consumption statistics functions (such as those equipped with IoT modules) can monitor the operating status of air compressors in real time, reduce downtime, and facilitate intelligent factory management.

Ease of installation and maintenance

Ensure sufficient installation space and adequate ventilation (the area around the air compressor must be well-ventilated, with an ambient temperature ≤40°C).

Select models with fewer wear parts and longer maintenance intervals (e.g., magnetic levitation air compressors do not require regular bearing replacement, while screw compressors require regular replacement of oil filters and air filters) to reduce operational and maintenance costs.

Selecting compressors for textile company

Company Size Recommended Model Key Considerations
Large enterprises (high production capacity) Centrifugal air compressor Energy efficiency, high flow rate, low long-term operating costs
Medium-sized enterprises Oil-free air compressors (variable frequency) Cleanliness, stability, load adaptability
Small enterprises Low-pressure screw air compressors (with post-treatment) Initial investment, ease of maintenance, basic cleanliness

The textile industry and Elang air compressors

In the textile texturing industry, Elang’s air compressors deliver outstanding performance and energy efficiency, bringing significant economic and environmental benefits to businesses. In particular, customised equipment exceeding Class 1 energy efficiency standards has become the benchmark for high-quality production in the industry. Choosing Elang’s air compressors means choosing a future of efficiency, energy savings, and stability.

In the textile and spinning industry, stable production processes and high-quality products are of utmost importance. Elang has established exceptional performance standards in the industry through its advanced air compressor technology. In particular, its customised equipment exceeding first-class energy efficiency standards demonstrates extraordinary advantages in energy savings and efficient production.
