The air compressor specially designed for medium-pressure laser cutting is an integrated armored equipment developed by ELANG Group for the sheet metal and laser industries. The system is equipped with 1.2m3/min@30bar compressed air, air tank 130L -1000L (optional), stainless steel plate for freeze dryer, lower pressure dew point, 5-stage precision filter, centralized electronic sewage, thereby ensuring the cleanness of the cutting gas source.

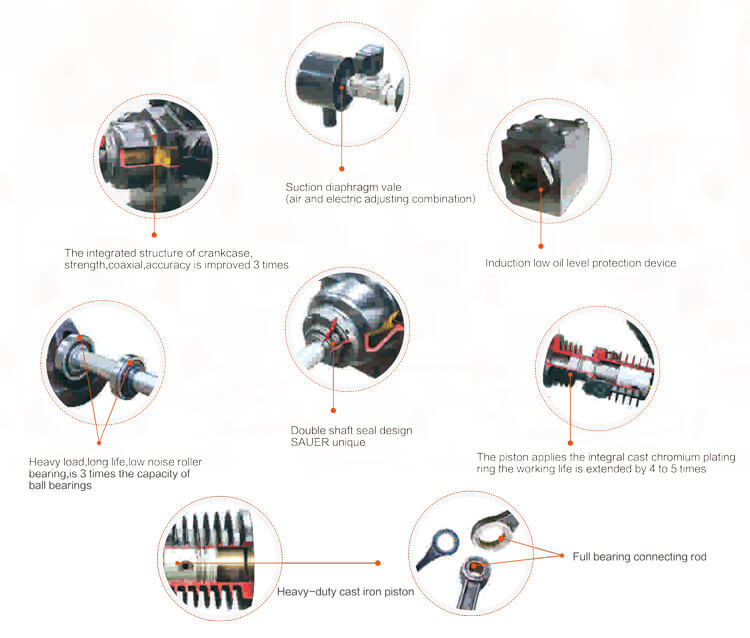

Features
| Model | Working Pressure | Air Delivery | Motor Power | Speed R.P.M | Compression Series | Dimension (MM) |
Weight | ||
| Mpa | m3/min | kw/hp | L | W | H | kg | |||
| ERC-0.6/30 | 3.0 | 0.6 | 9 | 730 | 2 | 1450 | 750 | 1050 | 470 |
| ERC-1.0/30 | 3.0 | 1.0 | 11 | 620 | 1450 | 750 | 1050 | 430 | |
| ERC-1.2/30 | 3.0 | 1.2 | 15 | 620 | 1450 | 750 | 1050 | 430 | |
| ERC-2.0/30 | 3.0 | 2.0 | 2*11 | 590 | 1450 | 1700 | 1050 | 600 | |
| ERC-2.4/30 | 3.0 | 2.4 | 2*15 | 660 | 1450 | 1700 | 1050 | 600 | |
| ERC-1.3/40 | 3.0/4.0 | 1.3 | 15 | 660 | 3 | 1450 | 750 | 1050 | 430 |
| ERC-1.6/40 | 3.0/4.0 | 1.6 | 18.5 | 720 | 1700 | 830 | 1030 | 580 | |
| ERC-2.0/40 | 3.0/4.0 | 2.0 | 22 | 620 | 1800 | 1060 | 1080 | 690 | |
| ERC-2.6/40 | 3.0/4.0 | 2.6 | 2*15 | 660 | 2100 | 830 | 1600 | 1200 | |
| ERC-3.2/40 | 3.0/4.0 | 3.2 | 2*18.5 | 720 | 2100 | 830 | 1600 | 1200 | |
| ERC-3.9/40 | 3.0/4.0 | 3.9 | 3*15 | 660 | 4000 | 830 | 1600 | 1800 | |
| ERC-4.0/40 | 3.0/4.0 | 4.0 | 2*22 | 620 | 2100 | 1060 | 1600 | 1500 | |
| ERC-4.8/40 | 3.0/4.0 | 4.8 | 3*18.5 | 720 | 4000 | 830 | 1030 | 1860 | |
| ERC-6.0/40 | 3.0/4.0 | 6.0 | 3*22 | 620 | 4000 | 1060 | 1600 | 2500 | |
| ERC-1.0/50 | 5.0 | 1.0 | 15 | 660 | 1750 | 850 | 1030 | 600 | |
| ERC-1.4/50 | 5.0 | 1.4 | 18.5 | 660 | 1750 | 850 | 1030 | 620 | |
| ERC-1.7/50 | 5.0 | 1.7 | 22 | 660 | 900 | 850 | 1600 | 560 | |
| Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 600V/3PH/50HZ/60HZ, and etc. |
|||||||||
