ERE Series Economic VSD Screw Air Compressor
Motor Power: 7.5 – 250 kw
Working Pressure: 8 – 10 bar
Air Delivery: 0.34 – 41.5 m3/min
Contact us to become an agent. Learn more about agency policy.
More competitive agent price by FCL!
oil injected air compressorvsd air compressorcompressor in hydropower stationcompressor for injection molding industrycompressor for PET bottle blowing industrycompressor in military enterprisescompressor for rubber manufacturingcompressor for paper industrycompressor for paper industrycompressor for woodworking industry
Why ERE series?
Complying with the development trend of the market and trade, and to meet customer demand at home and abroad, Elang is also making continuous progress and developed the ERE series.
For Elang ERE series, the E represents “Elang, Eficiency & Economic”. ERE series is designed for the customers who didn’t have much budget.” Quality First, integrity-based” is the everlasting operation tenet of the Elang Group. it is also applied in this series, Elang ERE series still use high quality spare parts and more durable chassis and canopy to support longer service life.
Advantages:

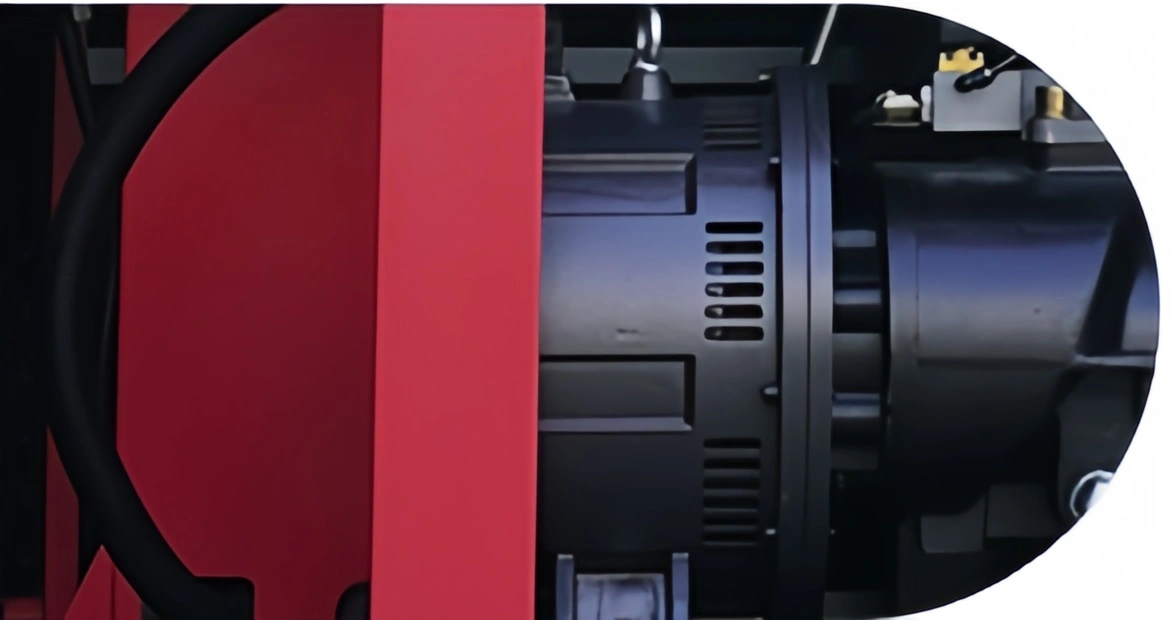

For VSD compressor, well-known frequency inverter brand is adopted with higher stability and reliability. Small starting impact to avoid overload starting. Energy efficiency can be achieved by adjusting the frequency.

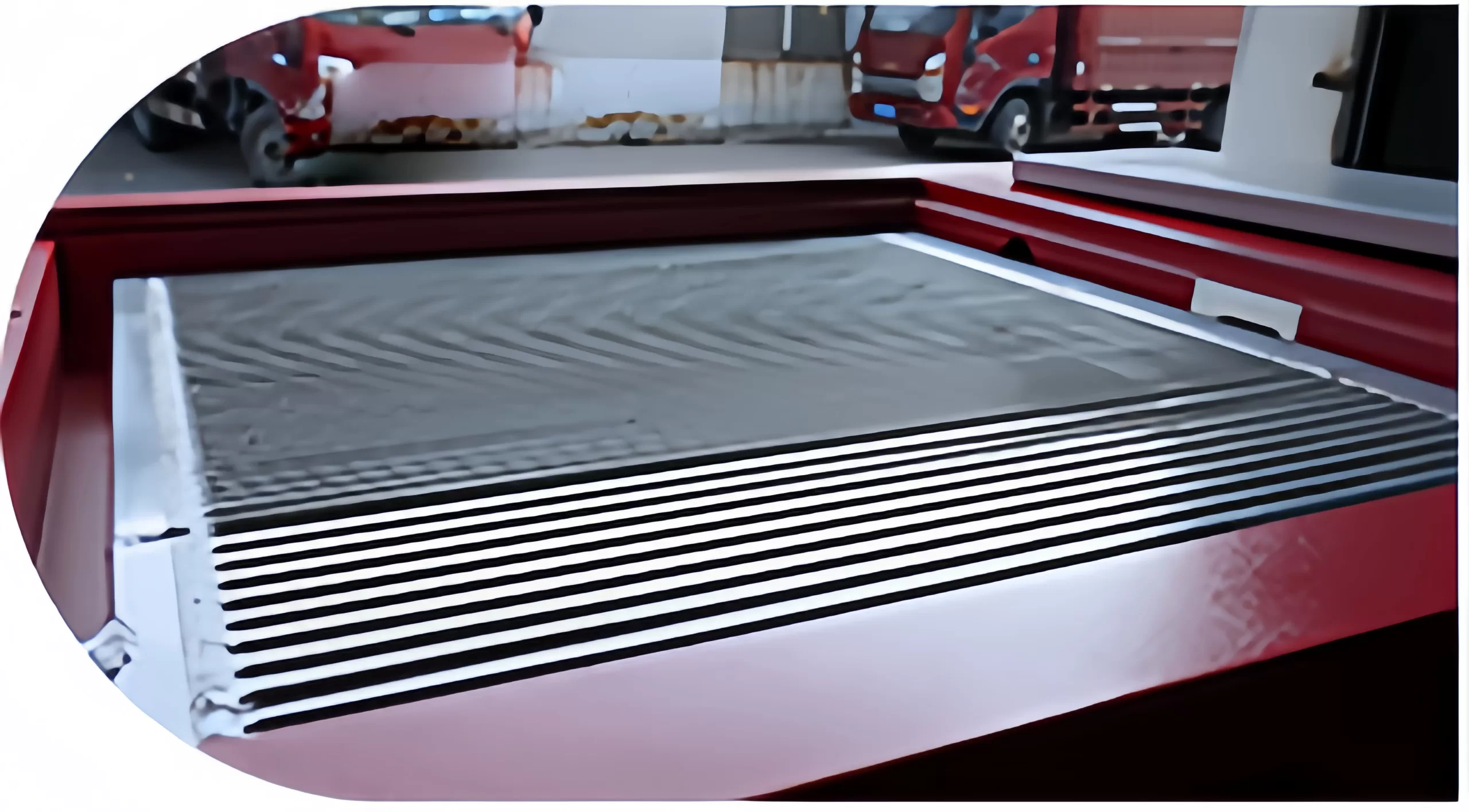

The cooler adopts super large heat exchange area design to improve the cooling efficiency, effectively prevent the compressor from high temperature, and prolong the service life of the compressor.

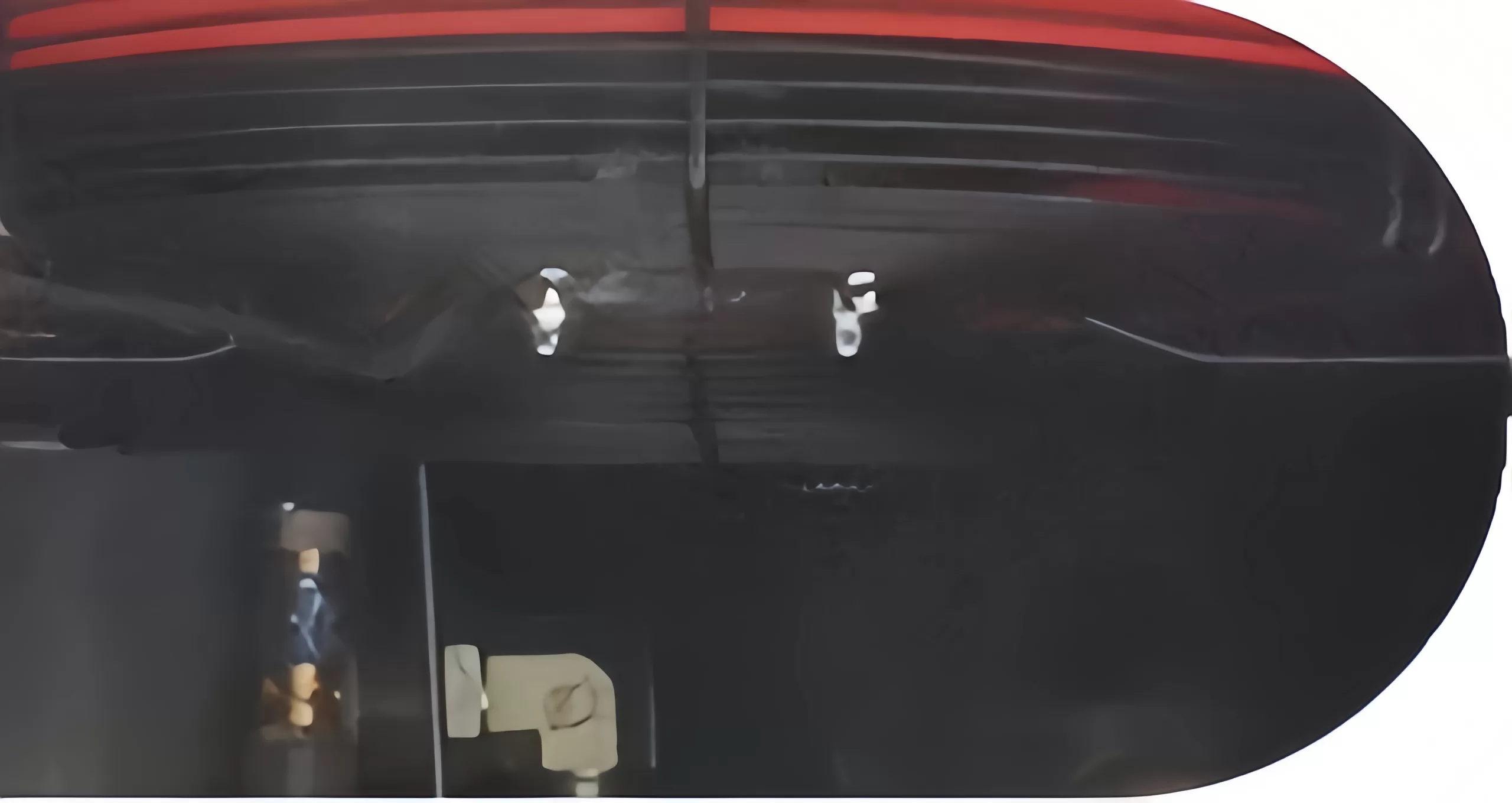

Higher quality fan and fan motor is adopted, lower noise and vibration, it can be used for more different working occasions.

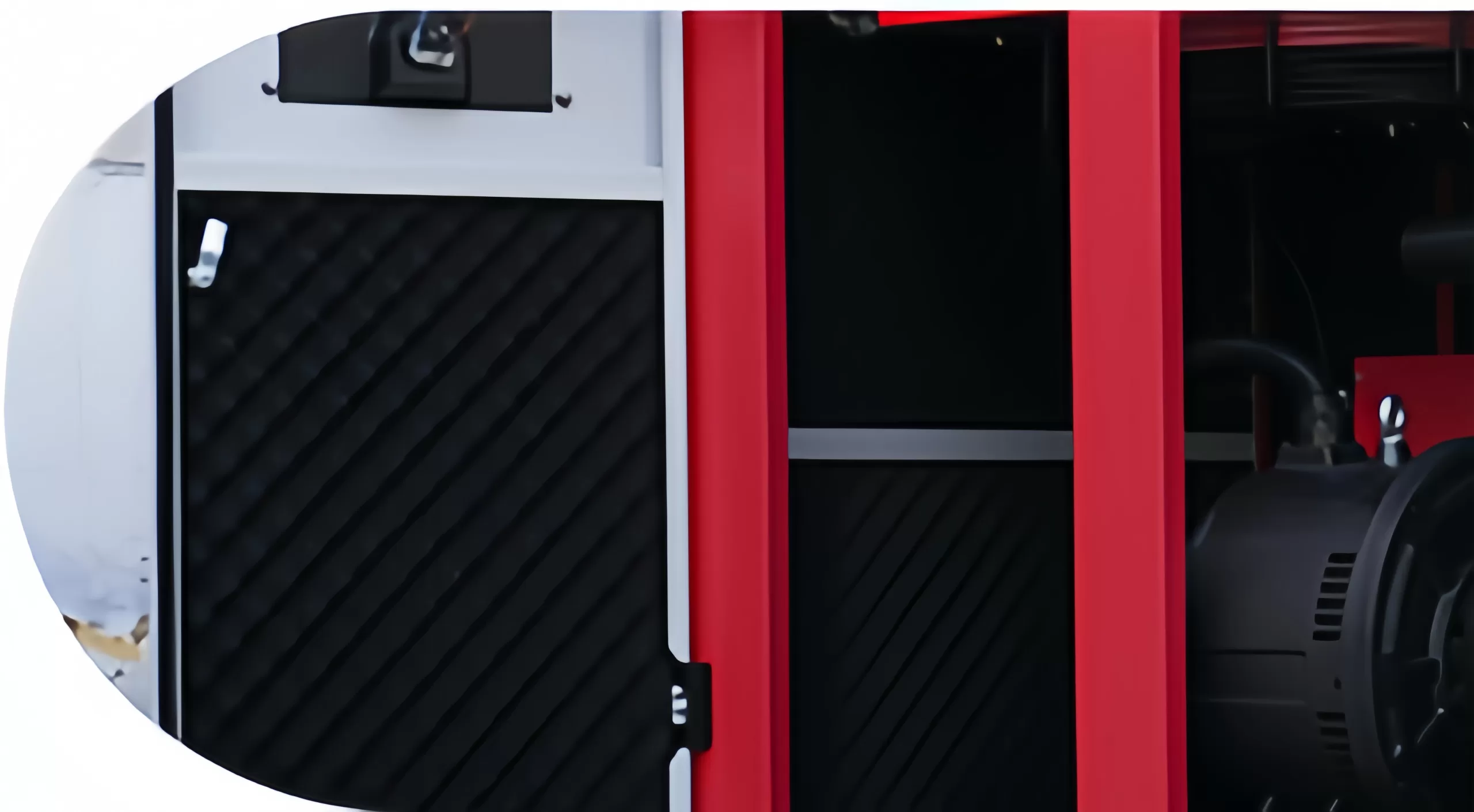

It stops most of the dust, moisture, particles and etc from entering compressor system, to increase the serice life of air end, air filter and oil filter, and protect the compressor.

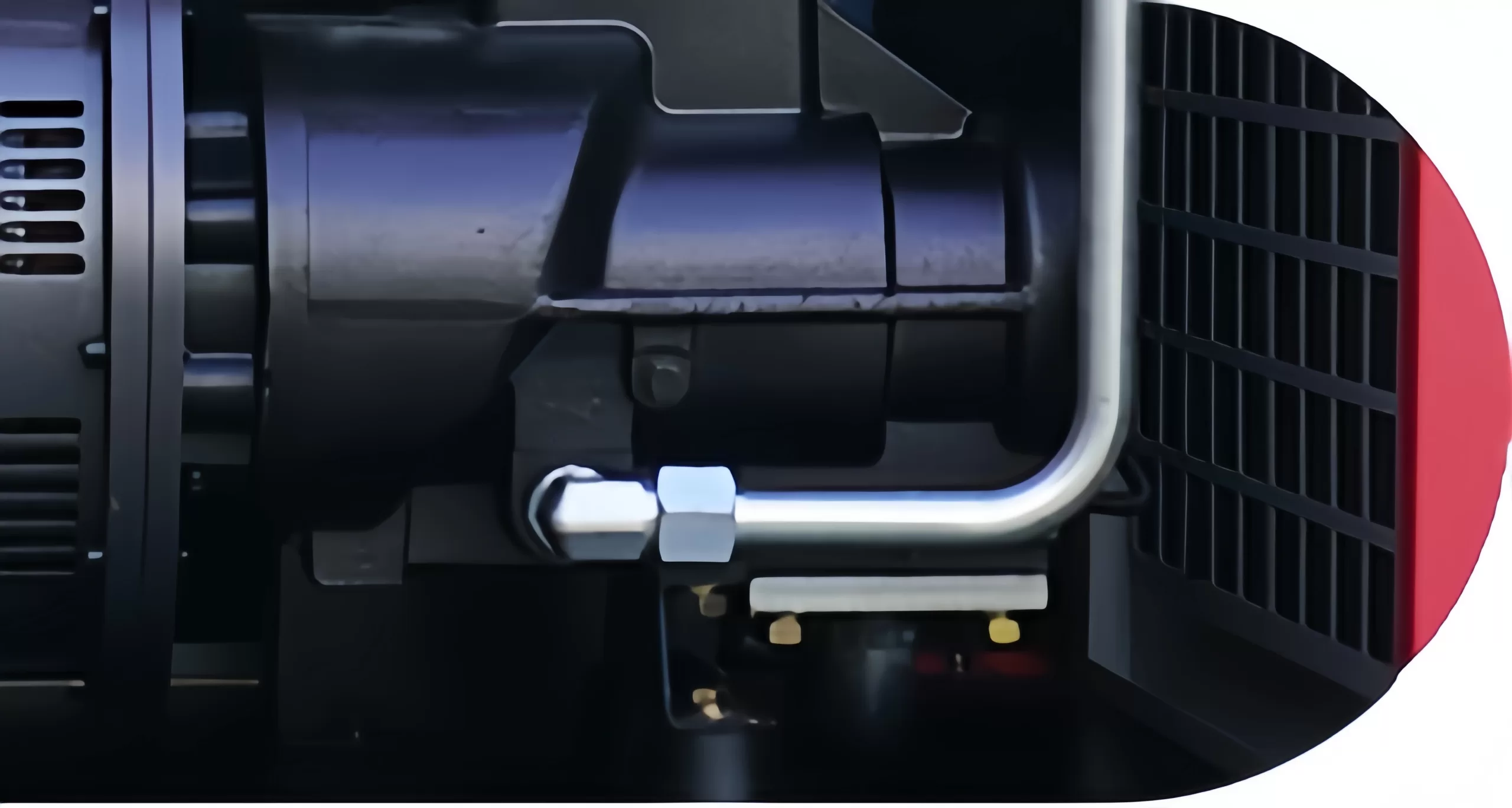

The air end adopts a new generation of profile with integrated shaft structure, compact structure, stable operation and high energy efficiency.

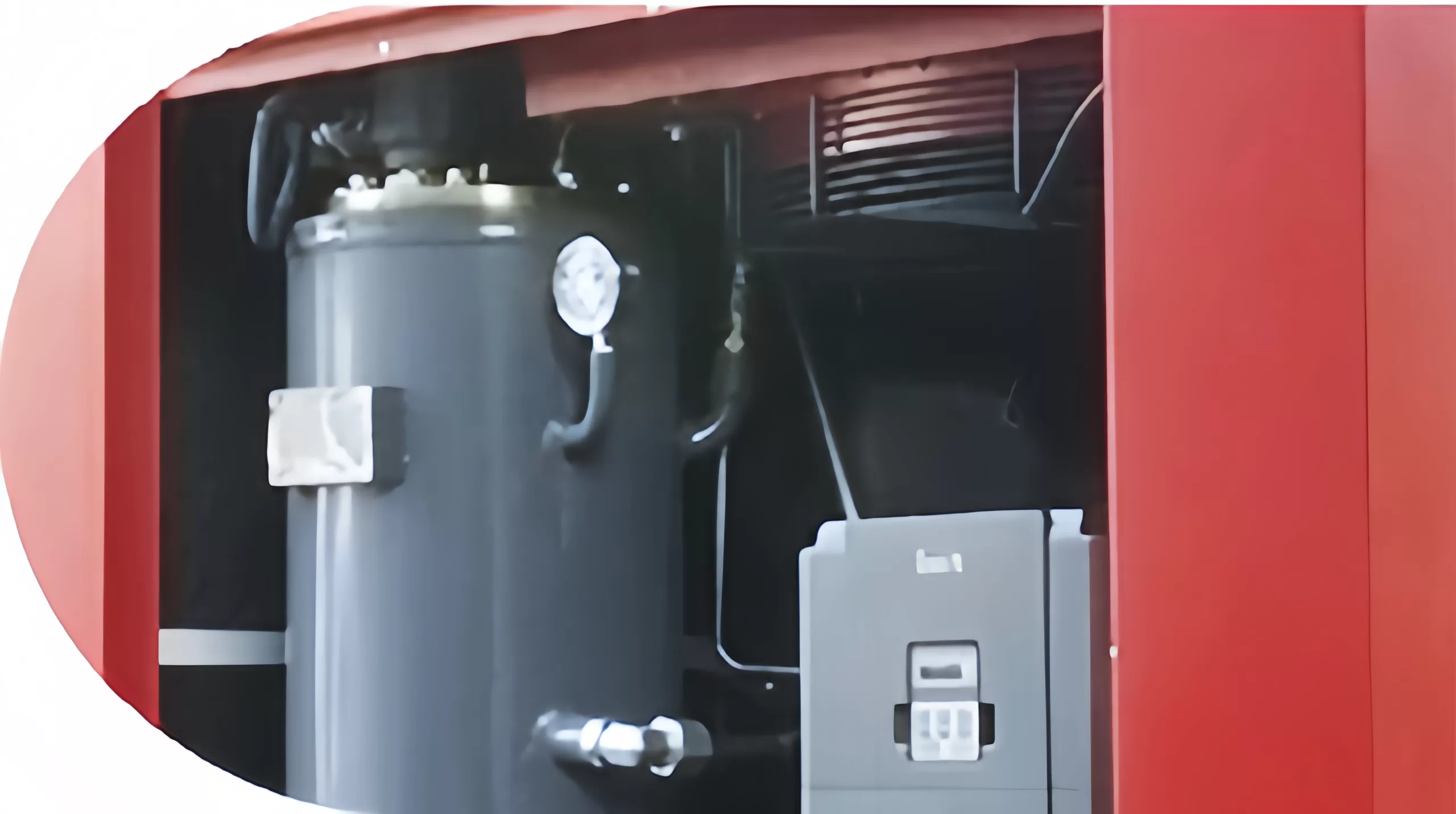

The oil-gas tank with super large capacity ensures lower system pressure difference. The oil separator element with better quality is equipped with advanced three-time oil-gas separation effect, and the oil content is below 3ppm to ensure the high quality of compressed air.

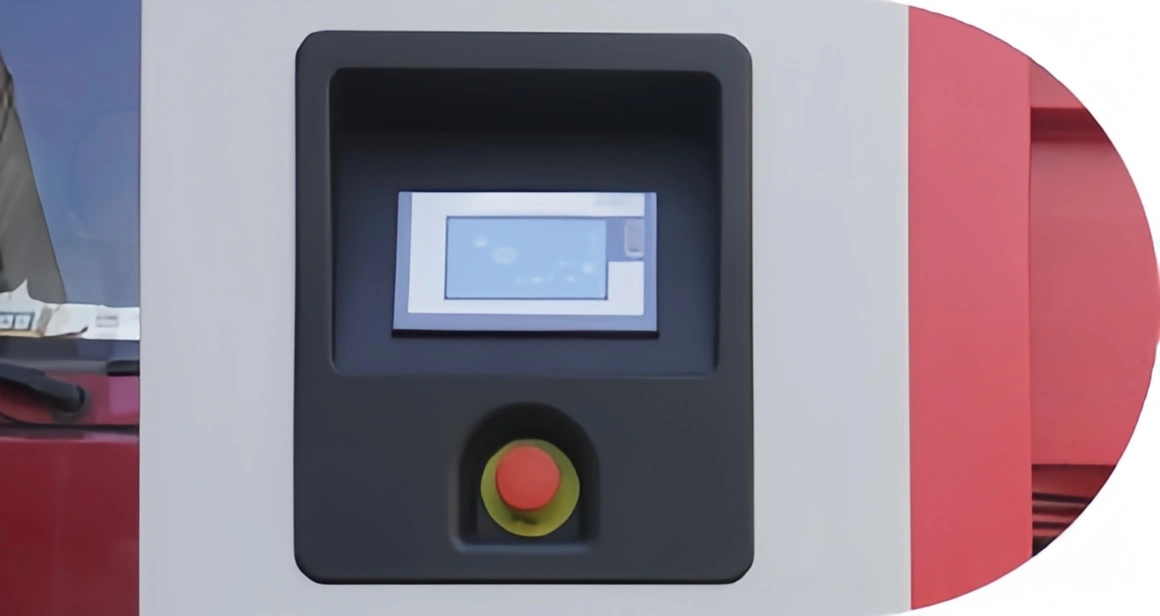

Touch screen with multiple languages for choose. Full protection functions for motor and compressors. Remote control with RS485 and IOT function available.

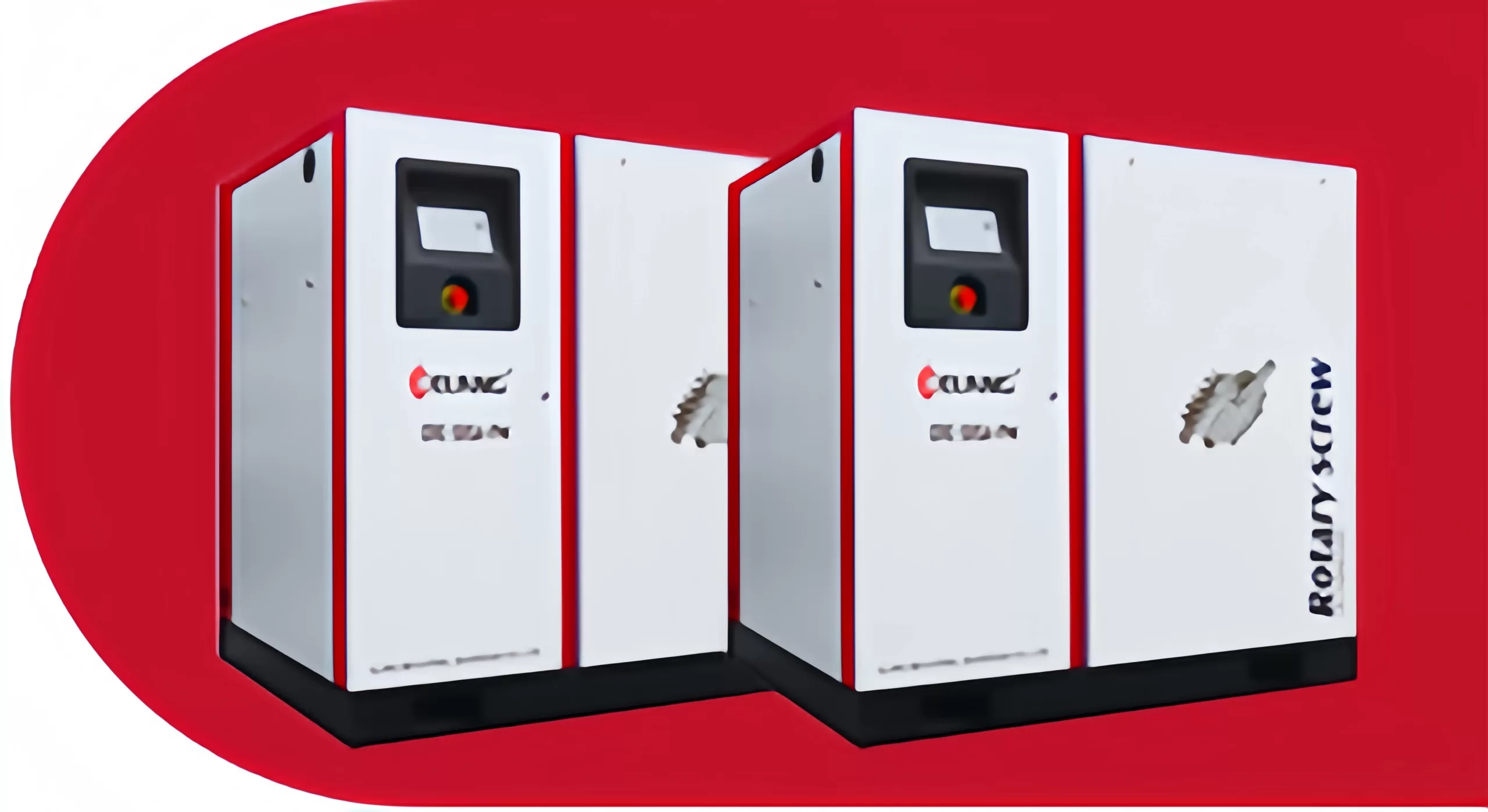

More thicker canopy and more solid chassis are adopted, production costs higher but the service life can be extended and ensured. Reasonable internal structure layout and stable operation, with durable and reliable parts, and the daily maintenance cost is lower.
Applications:
Suitable For Various General Industries

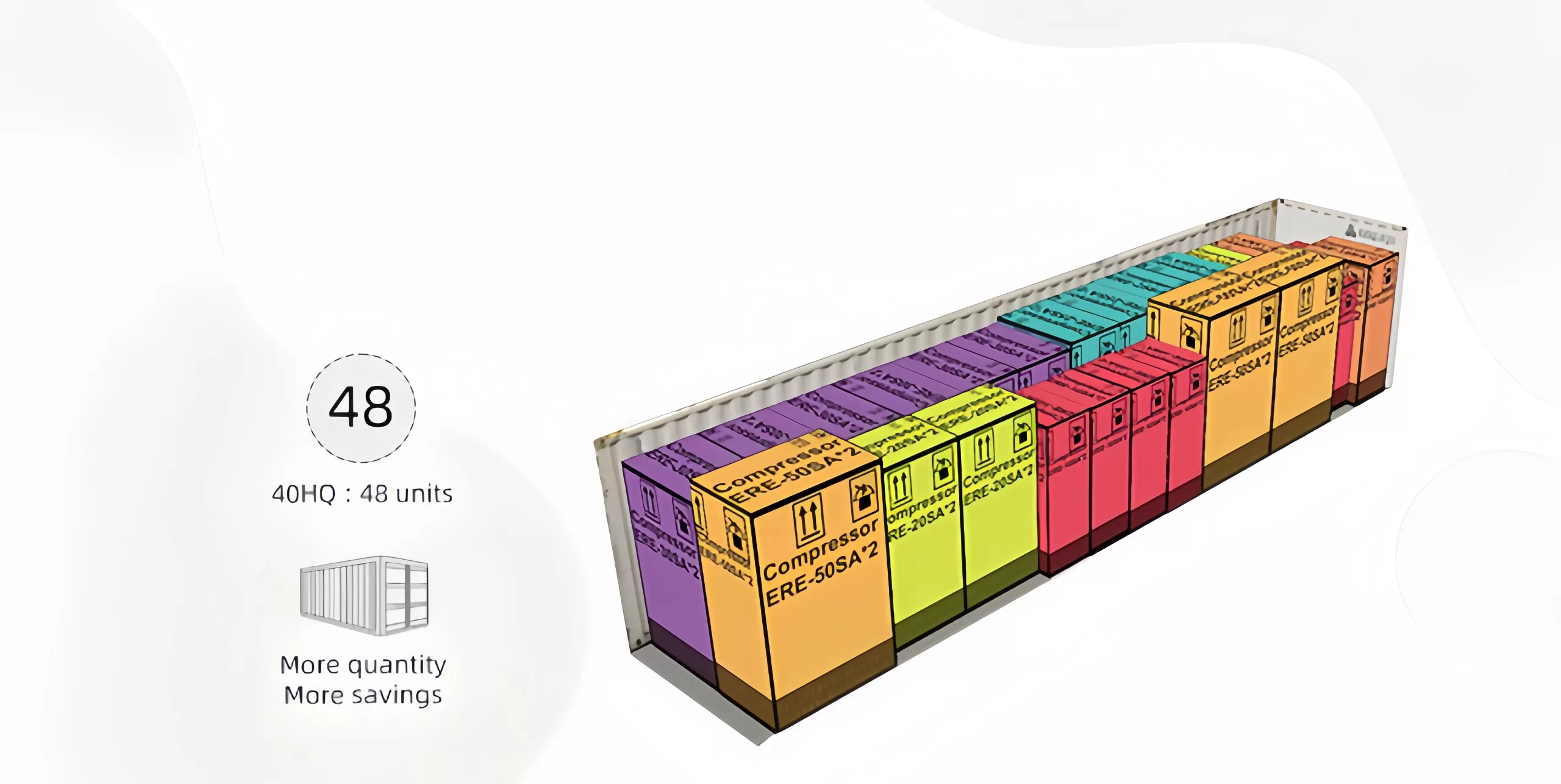

ERE Series Loading Solution
Project
120HP Air Compressor Installation
Elang 30 sets 132kw air compressor in Ethiopia
| Model | Motor Power | Cooling Volume | Working Pressure | Air Delivery | Weight | Dimension(mm) | Output pipe Diameter | |||
| HP | KW | m3/min | bar | m3/min | kg | L | W | H | ||
| ERE-10SA | 10 | 7.5 | 33 | 10 | 0.34 – 0.85 | 200 | 890 | 660 | 850/910 | G1/2″ |
| 8 | 0.42 – 1.06 | |||||||||
| ERE-15SA | 15 | 11 | 50 | 10 | 0.42 – 1.05 | 1080 | 750 | 1040 | G3/4″ | |
| 8 | 0.68 – 1.71 | |||||||||
| ERE-20SA | 20 | 15 | 66 | 10 | 0.66 – 1.64 | 260 | ||||
| 8 | 0.91 – 2.27 | |||||||||
| ERE-30SA | 30 | 22 | 97 | 10 | 1.11 – 2.77 | 360 | 1200 | 850 | 1100 | G1″ |
| 8 | 1.47 – 3.68 | |||||||||
| ERE-40SA | 40 | 30 | 132 | 10 | 1.45 – 3.63 | 1450 | 950 | 1230 | G1-1/2″ | |
| 8 | 2.00 – 5.00 | |||||||||
| ERE-50SA | 50 | 37 | 163 | 10 | 1.96 – 4.90 | 500 | ||||
| 8 | 2.58 – 6.45 | |||||||||
| ERE-60SA | 60 | 45 | 198 | 10 | 2.54 – 6.35 | |||||
| 8 | 2.84 – 7.10 | |||||||||
| ERE-75SA | 75 | 55 | 242 | 10 | 2.80 – 7.00 | 920 | 1700 | 1200 | 1620 | G2″ |
| 8 | 3.70 – 9.25 | |||||||||
| ERE-100SA | 100 | 75 | 330 | 10 | 3.66 – 9.14 | 960 | ||||
| 8 | 4.80 – 12.00 | |||||||||
| ERE-120SA | 120 | 90 | 396 | 10 | 4.74 – 11.85 | 1150 | 2000 | 1330 | 1700 | G2″ |
| 8 | 6.00 – 15.00 | |||||||||
| ERE-150SA | 150 | 110 | 484 | 10 | 5.92 – 14.80 | 2100 | 2500 | 1600 | 1860 | G2-1/2″ |
| 8 | 7.56 – 18.90 | |||||||||
| ERE-175SA | 175 | 132 | 580 | 10 | 7.50 – 18.75 | |||||
| 8 | 8.68 – 21.70 | |||||||||
| ERE-200SA | 200 | 160 | 704 | 10 | 8.62 – 21.50 | 2800 | 1800 | 2160 | G2-1/2″ | |
| 8 | 10.88 – 27.20 | |||||||||
| ERE-250SA | 250 | 185 | 814 | 10 | 10.80 – 27.00 | |||||
| 8 | 11.76 – 29.40 | |||||||||
| ERE-270SA | 270 | 200 | 880 | 10 | 11.68 – 29.20 | |||||
| 8 | 12.04 – 30.10 | |||||||||
| ERE-300SA | 300 | 220 | 968 | 10 | 11.88 – 29.70 | |||||
| 8 | 15.24 – 38.10 | |||||||||
| ERE-330SA | 330 | 250 | 1100 | 10 | 15.07 – 37.68 | |||||
| 8 | 16.60 – 41.50 | |||||||||
| Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/UL/SGS/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok |
||||||||||
